Zigbee: The Buzz Behind the Protocol
In this week’s article, we deep-dive into the Zigbee protocol. The name “Zigbee” is actually a nod to the waggle dance of honey bees. Bees perform this dance to share key information—like new water sources, prime nesting sites, or even the best gossip (I don’t speak honeybee). Much like this dance, Zigbee relays information back and forth between devices.
Zigbee: Origins and Purpose
Conceived in 1998, Zigbee was developed as a low-power mesh network for wireless communication and small data packet transmission. You might be thinking, “Sound familiar—like Z-Wave?” While both protocols emerged in the late ‘90s, there are some marked differences.
Unlike Z-Wave, which began as a proprietary protocol later made public, Zigbee was designed as a specification using the IEEE 802.15.4 standard. This means it was developed and standardized by a community of engineers, ensuring broad compatibility and open standards.
Understanding the Zigbee Mesh
Zigbee’s meshed communication sets it apart in several ways:
Zigbee Coordinator (ZC): The central hub, controller, and trust center. Every Zigbee network has exactly one coordinator, which stores security keys, network details, and device neighbors.
Zigbee Router (ZR): Also known as repeaters or range extenders, routers expand the network’s reach by relaying communications. They are always on, ensuring stable connections.
Zigbee End Device (ZED): These are the endpoints (think sensors, window/door contacts, and motion detectors). They are designed for low power consumption, often battery-powered, and can enter sleep mode when inactive.
Frequency and Configuration: Zigbee typically operates on the 2.4 GHz frequency—the same as many Wi-Fi networks. This frequency enables good data transmission rates but can lead to interference when Zigbee and Wi-Fi devices coexist.
Real-World Zigbee in Action
Imagine a smart home with a Zigbee network:
In this diagram, you see a coordinator and two routers forming a robust mesh. The dotted lines indicate Zigbee communications. With multiple connection paths available, if one pathway fails, the network can reroute the signal for continued reliability.

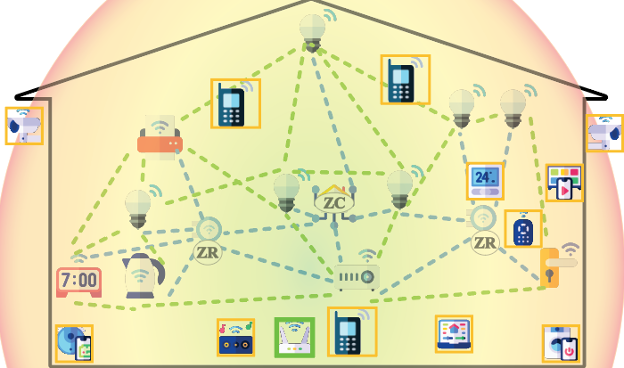

In this diagram, overlaying a gradient represents the Wi-Fi network. Here, some devices are highlighted as part of the Wi-Fi system, emphasizing that both networks coexist. Because Zigbee and 2.4 GHz Wi-Fi share the same frequency, interference is a possibility—especially in environments with high device density.
To illustrate further, picture a high-speed potato-throwing competition. Zigbee competitors (devices) throw communications in fixed, predictable patterns, while Wi-Fi competitors vary their speed and trajectory. The result? An occasional stray potato (or data packet) might hit its target unexpectedly!
Why Does It Matter?
Understanding these details is crucial when designing your smart home. The coexistence of Zigbee and Wi-Fi—especially with 2.4 GHz overlap—can cause erratic behaviors if not managed properly. Thankfully, newer Wi-Fi frequencies (5 and 6 GHz) help alleviate this issue, but proper planning remains essential.
It’s for these reasons (and many more) that Leios Consulting is here to plan, guide, and implement the optimal configuration for your specific smart home needs.
